Video Wall SAMSUNG VM46T-U

  1. Panel Type: IPS
  2. Diagonal Size: 55"
  3. Set Dimension (mm): 1022 x 577 x69.9
  4. Bezel width: 1.75 mm
  5. Resolution: Full HD 1920x1080
  6. Brightness: 500 cd/m2
  7. Viewing Angle: 178 / 178
  8. Connect:  HDMI, DVI, DP, USB, AUDIO

Usage market: Meeting room, shopping mall, retail store, restaurant, hotel...

ID: VM46T-U

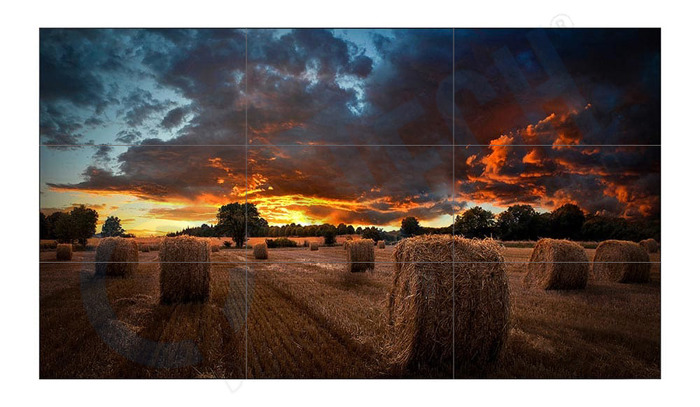

Video wall allows multiple puzzle pieces to be joined into a large picture, or each puzzle piece displays a different part of the image. These screens are centrally managed and operate continuously 24 hours/7 days, the brightness is perfect for spaces with bright sunlight, with vibrant colors. Thanks to them, the space for displaying and displaying information becomes more impressive.

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VMT-U series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.



Transform any space with high impact visuals

The slender design and 69.9mm cabinet depth provide flexibility for installation and an extreme-narrow 3.5mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colours regardless of where the screen is located.

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Image enhancement

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, colour saturation and contrast are improved by adjusting the gamma curve. Using Black Equaliser mode, dark images are lightened, making details easier to see.

SUSTAINABLE ACTIVITIES 24/7

Enjoy images displayed with up to 500nit brightness and impressive 24/7 continuous information transmission from the video wall VMT-U. The anti-glare curtain ensures important information is always seen regardless of ambient light conditions.

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and colour. Users can also fine-tune advanced settings with free powerful Colour Expert Pro software. For quick and simple calibration, Colour Expert Pro Mobile enables white balance adjustments for displays up to 5x5 using a mobile camera.



CNTech is a reputable and high quality distributor of video walls - video wall in Vietnam market. With many years of experience in the field along with a team of well-trained and trained technical and consulting staff will definitely bring you an experience of the most professional and dedicated service style.

CNTech Digital Signage Solution

Contact us for fast and best support: 0909 39 29 38

Email: sales@cntech.com.vn

PANEL
Diagonal Size 46"
Panel Type IPS
Resolution FullHD 1920x1080
Display Colors 16.7M - 8bit
Pixel Pitch(H x V) 0.53 x 0.53
Brightness(nit) 500
Contrast ratio 1.200:1
Viewing Angle (H x V) 178/ 178o
Response Time 8ms
Colour Gamut 72%
Glass Haze 0.25%
Vertical Scanning Frequency 62.7kHz ~ 72.3kHz
Horizontal Scanning frequency 57Hz ~ 63Hz
Maximum Pixel Frequency 82MHz
Dynamic Contrast Ratio 450.000:1
CONNECTIVITY
HDMI in 2
DP in 1
DVI in Yes
USB 1
IR in Yes
Headphone Yes
Audio out Stereo Mini Jack
Video out Yes
RS232 in Yes
RS232 out Stereo Mini Jack
POWER
Power Supply AC100 to 240 VAC (60 / 50Hz)
Power Consumption (On Mode) 160W
Power Consumption (Sleep Mode) 0.5W
SIZE
Set Dimension 1022 x 577 x 69.9(mm)
Package Dimension 1193 x 719 x 257 (mm)
WEIGHT
Set Weight 15.7 kg
Package Weight 22.2 kg
ENVIRONMENT
Working Temperature 0 ~40 oC
Working humidity 10 ~ 80%
MECHANICAL TECHNICAL CHARACTERISTICS
VESA Mount 600 x 400 mm
Bezel Width 3.5 (mm)
Frame Material Glossy
Mounting bracket Yes
