Ultra-Thin Style Stand Double Sided

  1. Model Number: CN-55DS
  2. Type: TFT
  3. Application: Indoor
  4. Panel size:  55"
  5. Operating System: Window, Android
  6. LCD Screen: LG (TFT-LCD+LED back lights)
  7. Resolution: 1,920 x 1,080 (FHD)
  8. Brightness: 400 cd / m2
  9. Full screen mode: 178/178
  10. Customize split screen into different content
  11. Schedule time auto turn on/off the screen
  12. Interface Type: LAN / Wifi / 3G, USB, VGA, HDMI

Market: shopping malls, retail stores, restaurants, hotels ...

ID: CN-55DS


Perfect Black

Limitless contrast and deepest black Self-lighting pixels switch off completely to reproduce black. No light bleeding. Absolute black offers infi nite contrast.

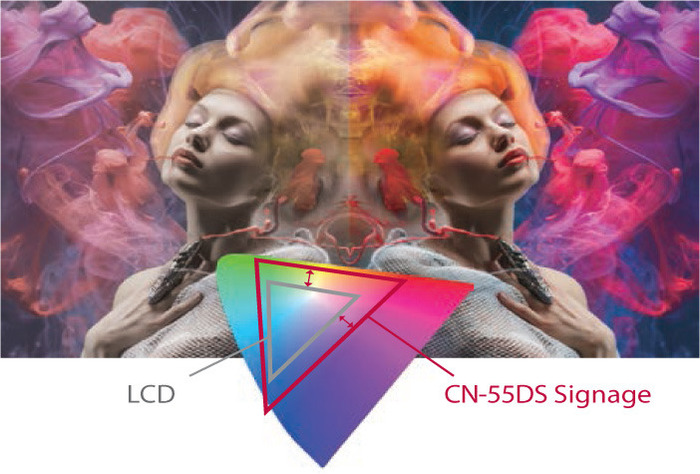

Perfect Color

Accurate & stable color reproduction: Self-lighting pixels bring colors to life with superb accuracy.

Perfect Viewing Screen

Wide viewing angle: Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.

Glass Picture Effect

Consisting of slim glass panes and OLED panels, signage gives the impression that the image is being projected directly from glass itself.

Two Types of Installation

There are accessories available specifi cally for hanging models and stand models.

Two Displays for Multiple Use

The  panels provide a two-way media experience and save space thanks to their innovative slim design.


Dimension

CNTech is a distributor of high quality advertising display in Vietnam market. With many years of experience in the field together with consulting staff, well trained and trained technicians will surely bring you the most professional and enthusiastic service experience.

CNTech Digital Signage Solution

Contact us for the fastest and best support: 0909 39 29 38

Email: sales@cntech.com.vn

Model

CN-55DS

Panel Size

55''

Active Display Area(mm)

680.4*1209.6mm

Brand

LG (TFT-LCD+LED back lights)

Aspect Ratio

16:09

Max Resolution Support

3840*2160

Color

8Bit,16.7M

Brightness (nits)

500 cd/m2

Contrast

4000:1

Visual Angle (H/V)

178°(H) / 178°(V)

Response Time

6.5ms

View angle

178°/178°(H/V)

CPU

Rockchip Cortex A17 1.8GHz

Mainboard

RK3288

GPU

Rockchip   Mali-T764 MP

System RAM

DDR3 2GB

System RoM

EMMC 8GB

Storage

TF/USB

DISPLAY

Rotate, two screen display same, two screen display different, picture in picture

IO connectors

INPUT:  2 x USB, 1X HDMI, TFX1,LANX1, SATAX1

OUTPUT: SIGNAL DISPLAYX2, IR REMOTE CONTROLLERX1, AUDI 10WX2 SPEAKER

Wired network

built-in Realtek RTL8103EL

Audio

built-in HD audio audio system

Video format

WMV   AVI   FLV  RM  RMVB  MPEG  TS  MP4

SAudio format

MP3

Photo format

JPG、JPEG、BMP、PNG、GIF

OS

Android 5.1

WIFI

YES

Feature

 RTC clock, timer on/off, extend SATA hard disk

3G/4G

Optional

Play Mode

Repeat,Timing,Insert Play and so on

Network

RJ45 Ethernet,Wifi,and other wireless device extended

Environment

Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:10%-80% RH at 40°C,

System Power Supply

AC 100V~240V,50/60HZ

consumption

55inch 185W ;  43inch: 155W

Case

Cold rolled steel with powder coating+ toughened glass surface

Functions and Applications

  • Support Format: Photo format, JPEG,BMP,PNG. Video format, MPG,MPEG,DAT,MP4,AVI,VOB,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,MOTONJPEG,ASF,WMV,FLV. Music format, MP3,AAC-LC,WMA.
  • Automatical and cycle play when power on,play follow data name or playlist.
  • 5 groups of automatic power on/off with volume can be set. Daily and weekly timer power on/off.
  • Multiple time display mode.
  • Support photo show time, and various slide modes can be set.
  • Support photo/music/photo/video/music/all/playlist.
  • Support playlist: play photo/video/music and subtitles in the specified time.
  • Support one roll.txt can set on or off, multiple marguee color and back color.
  • Support photo/video all repeat, single repeat, or not repeat.
  • Support power resume function.
  • Support USB high speed update information, support USB upgrade function.
  • Effect adjust: brightness, contrast, color, sharpness, backlight, noise reduction, video mode.
  • Support check the data of photo or video.
  • AD insert: 1-60 minute, up to 9 AD can be insert.
  • New function: Can be set split-screen 1 to 10 sections for broadcasting video and photos, free to set the sections. (request this function should be informed when ordering).
