Ultra Stretch Signage Mount

For LG 86BH5C

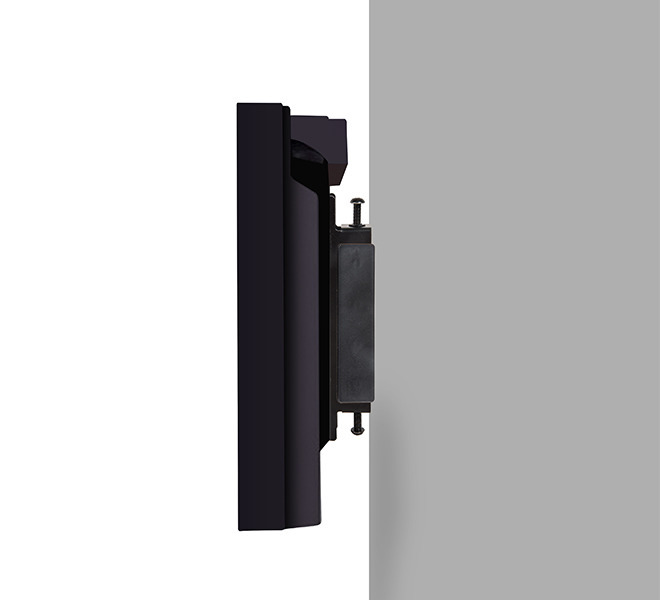

BT9905 is a mounting solution that is ideal for landscape mounting LG's 86BH5C Ultra Stretch Signage to a wall. At a depth of just 45mm, the finished install is close to the wall but still allows enough room for easy access to connectors. Safety screws come as standard to help prevent unauthorised removal of the screen and height adjustment screws allow the screen to be levelled perfectly after installation.

ID: BT9905


BT9905

  • Recommended screen size: 86"
  • Max load: 50kg
  • Max VESA® fixings: 600 x 200
  • Distance from wall: 47mm
  • Dimensions: L: 705mm x H: 228mm x D: 45mm

BT9906

  • Recommended screen size: 86"
  • Max load: 50kg
  • Max VESA® fixings: 800 x 200
  • VESA® fixings when mounting LG's 86BH5: 600 x 200
  • Distance from wall: 65mm
  • Dimensions: L: 305mm x H: 886mm x D: 65mm
  • Ideal for use with the LG 86BH5C 86", 58:9 Ultra Stretch Signage
  • Mounts screen just 47mm from wall whilst still allowing easy access to connectors
  • Ideal for landscape mounting
  • Arms feature levelling screws to adjust the screen height
  • Pole mounted version for ceiling and floor mounting is available on request
  • Safety screws help prevent unauthorised removal of screens
  • High end aesthetic quality with stylish end caps for a neat and tidy install
  • Portrait mounted solution also available, please see BT9906
  • All mounting hardware included
