New Design Configuration

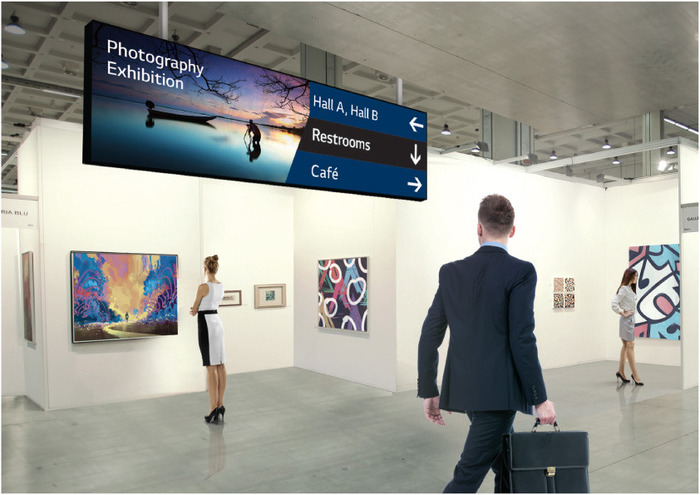

- 32:9 Extended Wide FormatIt is a totally new wide screen format with 32:9 bar type, the most promising display for advertisement and information delivery.
- Ultra HD Resolution (3,840 x 1,080): Ultra HD resolution delivers an immersive viewing experiences with vivid colors and clear images.
Optimized Content Delivery
88BH7D is ready to organize multi content with video and text according to user's desired ratio. Also, it is optimal to show a vertical or horizontal object without truncation, providing real-like viewing experiences to the audience. It is the best way to attract people's attention and maximize advertisement effect.
Multiple Screens
PBP with Four Divisions in Landscape or Portrait The Picture-by-Picture (PBP) feature allows you to compose multi content in one single display with upto four parts. It is very useful and convenient to deliver many different advertisements or pieces of information at the same time without calibration.
Multiple Content Creation
Users can edit content that consists of one video and several still images (up to 20) as they want.
LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update fi rmware
Tiling Scene with Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain confi guration.
Dimension

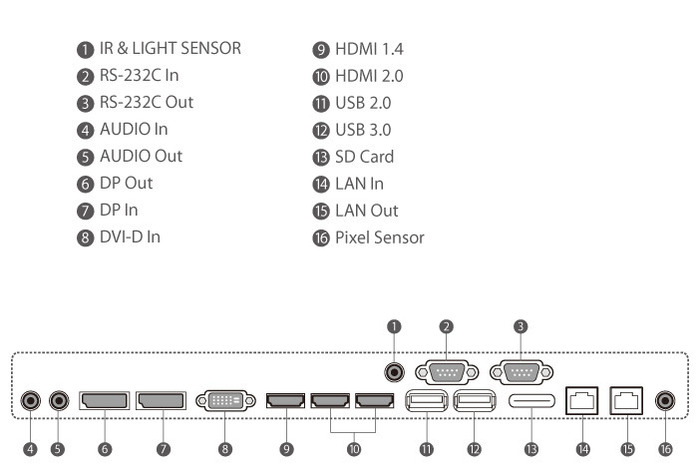

Connectivity
CNTech is a distributor of high quality advertising display in Vietnam market. With many years of experience in the field together with consulting staff, well trained and trained technicians will surely bring you the most professional and enthusiastic service experience.
CNTech Digital Signage Solution
Contact us for the fastest and best support: 0909 39 29 38
Email: sales@cntech.com.vn
|
Panel |
88BH7D |
|
Screen Size |
86 Inch |
|
Panel Technology |
IPS |
|
Aspect Ratio |
32:9 |
|
Native Resolution |
3,840 x 600 (UHD) |
|
Brightness(Typ., cd/m²) |
700 nit |
|
Contrast Ratio |
1,100:1 |
|
Viewing Angle (H x V) |
178 x 178 |
|
Color Depth |
10bit(D), 1.07 Billion |
|
Response Time |
8ms (G to G BW) Typ |
|
Surface Treatment (Haze) |
AGLR (Haze 3%) |
|
Life Time (Typ.) |
50,000 Hrs |
|
Guaranteed Operating Hours |
18 Hrs |
|
Orientation |
Landscape & Portrait |
|
Connectivity |
|
|
Input |
HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card |
|
Output |
DP, Analog Audio |
|
External Control |
RS232C In/Out, RJ45 In/Out, IR & Light Sensor, Pixel Sensor |
|
Physical Specification |
|
|
Bezel Color |
Black |
|
Bezel Width |
4.4 mm (L/R), 5.9 mm (U/D) |
|
Monitor Dimension (W x H x D) |
2,158.3 x 611.2 x 84.8 mm |
|
Weight (Head) |
34.2 Kg |
|
Carton Dimensions (W x H x D) |
2,274 x 717 x 212 mm |
|
Packed Weight |
53.2 Kg |
|
VESA™ Standard Mount Interface |
600 x 200 mm |
|
Environment Conditions |
|
|
Operation Temperature |
0°C to 40°C |
|
Operation Humidity |
10 % to 80 % |
|
Power Consumption |
|
|
Power Supply |
100-240V~, 50/60Hz |
|
Power Type |
Built-In Power |
|
Typ. / Max |
400W / 500W |
|
Standard (Certification) |
|
|
Safety |
UL / cUL / CB / TUV / KC |
|
EMC |
FCC Class "A" / CE / KCC |
|
ErP / Energy Star |
Yes /No |
|
Media Player Compatibility |
|
|
OPS type compatible |
Yes |
|
External Media player Attatchable |
No |
|
Accessory |
|
|
Basic |
Remote Controller (2ea Batteries included), Power Cord, DP (2.6M), RS-232C Cable (3M) |
|
Optional |
AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) |
