Stretch Signage Digital Content LG 86BH5C

  1. Model: 86BH5C
  2. Application: indoor
  3. Panel size:  86”
  4. LCD Screen: LG
  5. Bezel: 4.4mm (L/R), 5.9mm (T/B)
  6. Resolution: 3,840 x 600 (UHD)
  7. Brightness: 500 cd/m2
  8. Full screen mode: 178 / 178
  9. Function: Photo slides, Movie full HD, Music Playback
  10. Interface Type:  HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card/ RJ45/ Audio/ IR

Market: shopping malls, retail stores, restaurants, hotels ...

ID: 86BH5C


New Design Configuration

  • Ultra HD Resolution: (3840 x 600), large screens deliver an immersive viewing experience.
  • 58:9 Extended Wide Format: Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.


Multiple Screens
4 Divided PBP in Landscape or Portrait The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.

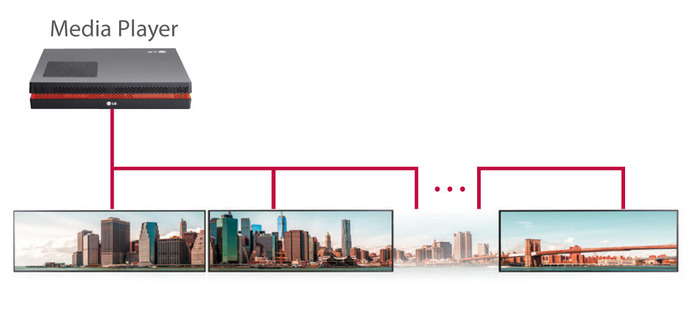

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.

Tiling Scene with Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain confi guration.

LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update fi rmware.

Side Bracket / Classified Port
This product supports side brackets for buried installations. The classified in/out port prevents errors when connecting a daisy chain.



Dimension


Connectivity

CNTech is a distributor of high quality advertising display in Vietnam market. With many years of experience in the field together with consulting staff, well trained and trained technicians will surely bring you the most professional and enthusiastic service experience.

CNTech Digital Signage Solution

Contact us for the fastest and best support: 0909 39 29 38

Email: sales@cntech.com.vn

Panel

86BH5C

86BH7C

Screen Size

86 Inch

86 Inch

Panel Technology

IPS IPS

Aspect Ratio

58:9 58:9

Native Resolution

3,840 x 600 (UHD)

3,840 x 600 (UHD)

Brightness(Typ., cd/m²)

500 nit

700 nit

Contrast Ratio

1,100:1 1,100:1

Viewing Angle (H x V)

178 x 178 178 x 178

Response Time

8ms (G to G BW) Typ  8ms (G to G BW) Typ

Surface Treatment (Haze)

AGP (10% Haze) AGP (10% Haze)

Life Time (Typ.)

50,000 Hrs 50,000 Hrs

Guaranteed Operating Hours

18 Hrs 18 Hrs

Orientation

Landscape & Portrait

Landscape & Portrait

Connectivity

Input

HDMI, DP, OPS, DVI-D, USB 2.0, USB 3.0, SD Card

HDMI, DP, OPS, DVI-D, USB 2.0, USB 3.0, SD Card

Output

Analog Audio

Analog Audio

External Control

RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio

RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio

Physical Specification

Bezel Color

Black Black

Bezel Width

4.4 mm (L/R), 5.9 mm (T/B)

4.4 mm (L/R), 5.9 mm (T/B)

Monitor Dimension (W x H x D)

2,158.3 x 348.5 x 81.7 mm

2,158.3 x 348.5 x 81.7 mm

Weight (Head)

20.5 Kg

20.5 Kg

Carton Dimensions (W x H x D)

2,290 x 228 x 599 mm

2,290 x 228 x 599 mm

Packed Weight

38.2 Kg

38.2 Kg

VESA™ Standard Mount Interface

600 x 200 mm

600 x 200 mm

Environment Conditions





Operation Temperature

0°C to 40°C

0°C to 40°C

Operation Humidity

10 % to 80 %

10 % to 80 %

Power Consumption





Power Supply

100-240V~, 50/60Hz

100-240V~, 50/60Hz

Power Type

Built-In Power

Built-In Power

Typ. / Max

180W / 220W

215W / 255W

Standard (Certification)

Safety

UL / cUL / CB / TUV / KC

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KC

FCC Class "A" / CE / KCC

ErP / Energy Star

NA / NA

NA / NA

Media Player Compatibility

OPS type compatible

Yes

Yes

External Media player Attatchable

No

No

Accessory





Basic

Remote Controller (2ea Batteries included),
Power Cord, DP (2.6M), RS-232C Cable (3M)

Remote Controller (2ea Batteries included),
Power Cord, DP (2.6M), RS-232C Cable (3M)

Optional

AN-WF500 (Wi-Fi USB Dongle), MP700,
KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)

AN-WF500 (Wi-Fi USB Dongle), MP700,
KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)
