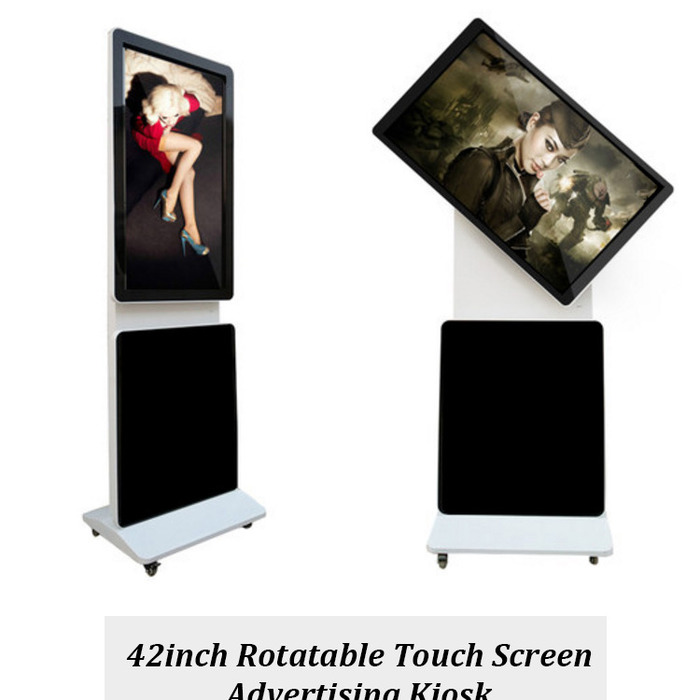

Screen Rotating Advertising Kiosk CN-TKR

  1. Model Number: CN-TKR

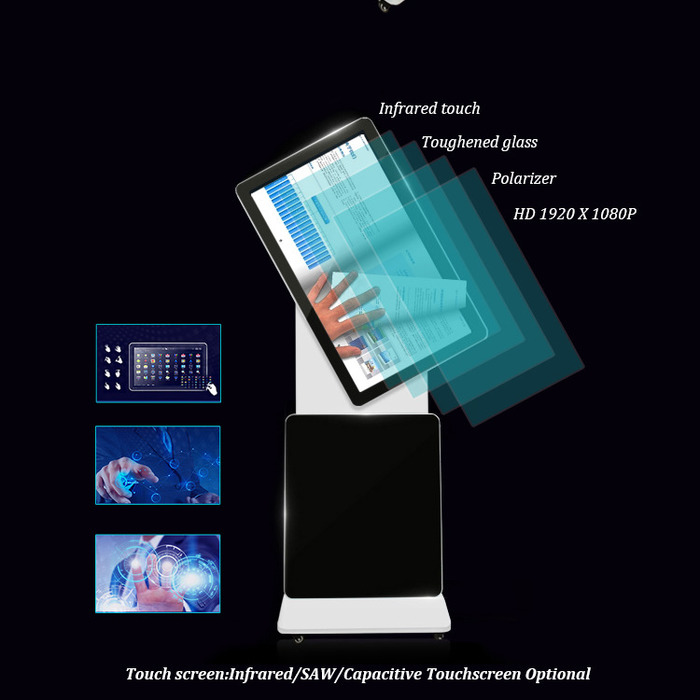

  2. Type: TFT, Infrared, LCD Touch Screen
  3. Application: Indoor
  4. Panel size: 42" 49" 55" 65"
  5. Operating System: Window / Android
  6. LCD Screen: Samsung, LG
  7. Resolution: Full HD 1920x1080
  8. Brightness: 450 cd / m2
  9. Full screen mode: 178/178
  10. High quality aluminum alloy casing

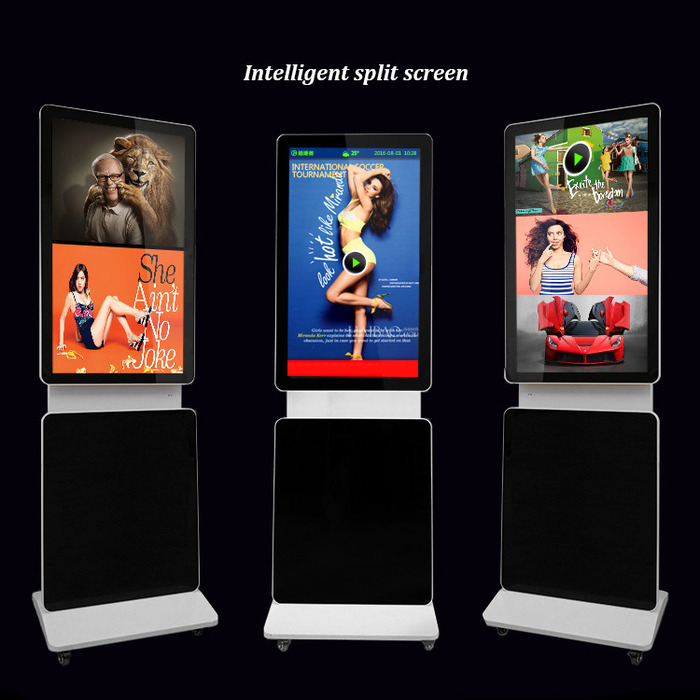

  11. Customize split screen into different content
  12. Schedule time auto turn on/off the screen
  13. Interface Type: LAN / Wifi / 3G, USB, VGA, HDMI

Market: shopping malls, retail stores, restaurants, hotels ...

ID: CN-TKR


CNTech is a distributor of high quality advertising display in Vietnam market. With many years of experience in the field together with consulting staff, well trained and trained technicians will surely bring you the most professional and enthusiastic service experience.

CNTech Digital Signage Solution

Contact us for the fastest and best support: 0909 39 29 38

Email: sales@cntech.com.vn

TECHNICAL SPECIFICATIONS

Model Number CN-TKR
Brand name OEM, ODM
Type TFT, Infrared, LCD Touch Screen
Application Indoor
Panel Size 42" 49" 55" 65"
Display Colors 10 bit, 16.7M
Number of Pixels 1920x1080P
Luminance of White 450 cd/m2
Processor RK3288, Octa core
RAM 4G, DDR3
Memory Build-in FLASH memory 8G
Multiple Storage Media Support Support USB 2.0/ SD/ MMC card
Video Output HDMI Video Output
Audio Output Dual-channel stereo audio output
Remote control Available
Operation System Android 4.2.0
I/O USB2.0 x 2, RJ-45 x 1, TF card plug x 1, AV x 1, HDMI x 1, DC x 1
OS language English (Default, multi language supported)

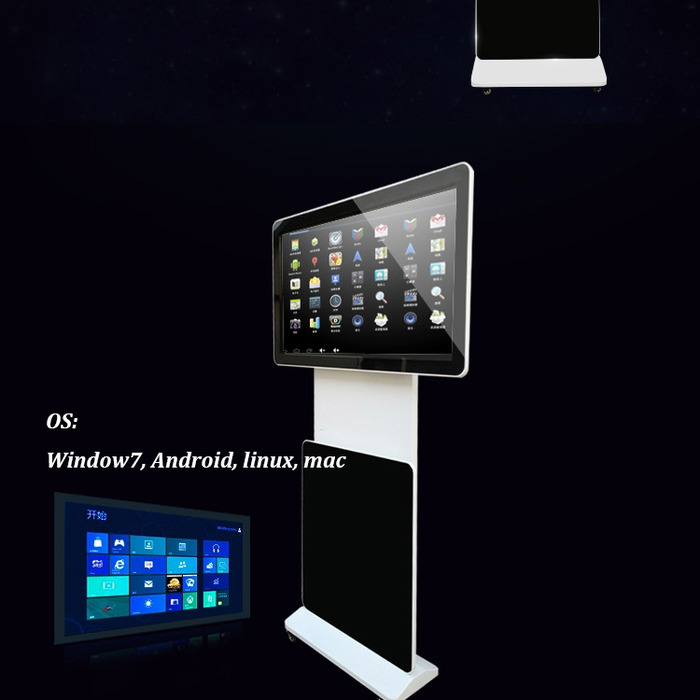

OS Window7, Android
Max Resolution 1080P
Contrast Ratio 3500:1
LCD Screen Samsung, LG, SCR
Working Life 50000h-60000h
Appearance Classic type, Stents shapes, Chassis, Other customized
Certificate CE FCC ROHS
Warranty 1 year

DETAILED PRODUCTS

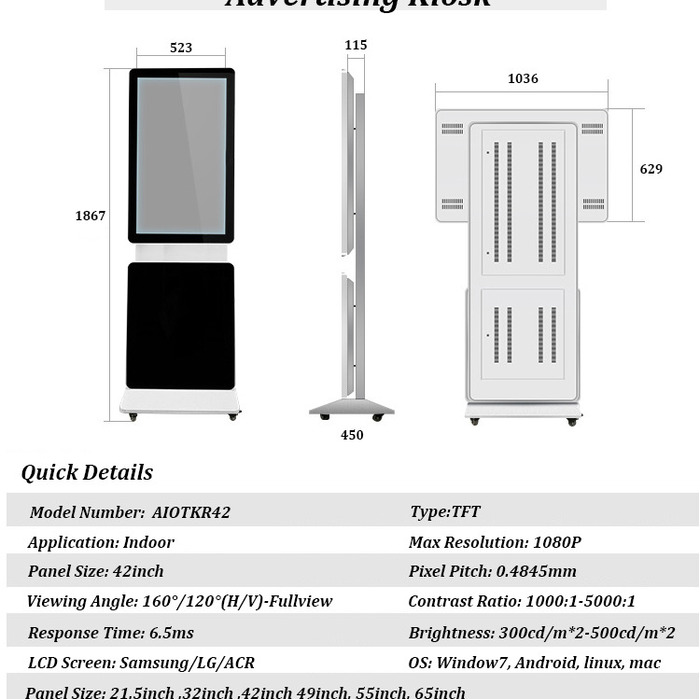

Specification 42" 46" 55" 65"
Outframe Size 730x70x2000mm 772x70x2019mm 810x80x2080mm 930x80x2200mm
LCD Screen Samsung/LG Samsung/AU LG/ACR ACR
Display Scale 16:9 16:9 16:9 16:9
Display Area 523x930mm 572x1018mm 680x1209mm 804x1428mm
Screen Resolution 1920x1080 1920x1080 1920x1080 1920x1080
Output resolution 1080P 1080P 1080P 1080P
Viewing Angle Fullview Fullview Fullview Fullview
Brightness 500cd/m*2 450cd/m*2 500cd/m*2 500cd/m*2
Contrast 5000:1 4000:1 5000:1 5000:1
Colour 16.7m 16.7m 16.7m 16.7m
Working Life 60000h 60000h 60000h 60000h
Power 100-130W 110-140W 140-160W 250W
Voltage 110-240 110-240 110-240 110-240
Memory Card 4G 4G 4G 4G
Net Weight 80kgs 83kgs 96kgs 160kgs
Carton Size

192x79x19cm

base:69x38x9cm

193x95x22cm

base:86x45x9cm

193x95x22cm

base:86x45x15cm

210x110x22cm

base:100x55x15cm

Functions and Applications

  • Support Format: Photo format, JPEG,BMP,PNG. Video format, MPG,MPEG,DAT,MP4,AVI,VOB,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,MOTONJPEG,ASF,WMV,FLV. Music format, MP3,AAC-LC,WMA.
  • Automatical and cycle play when power on,play follow data name or playlist.
  • 5 groups of automatic power on/off with volume can be set. Daily and weekly timer power on/off.
  • Multiple time display mode.
  • Support photo show time, and various slide modes can be set.
  • Support photo/music/photo/video/music/all/playlist.
  • Support playlist: play photo/video/music and subtitles in the specified time.
  • Support one roll.txt can set on or off, multiple marguee color and back color.
  • Support photo/video all repeat, single repeat, or not repeat.
  • Support power resume function.
  • Support USB high speed update information, support USB upgrade function.
  • Effect adjust: brightness, contrast, color, sharpness, backlight, noise reduction, video mode.
  • Support rotate menu90/270/0/180 degree, support vertical LCD products.
  • Support check the data of photo or video.
  • AD insert: 1-60 minute, up to 9 AD can be insert.
  • New function: Can be set split-screen 1 to 10 sections for broadcasting video and photos, free to set the sections. (request this function should be informed when ordering).
